DHB-301 2HP(1.5kw) Single Stage Ring Blower 1Phase

DHB-301 2HP(1.5kw)

Single Stage Ring Blower(Side Channel, Centrifugal, Regenerateve blower) 1Phase

1. Basic Spec - Free Volt 50Hz-1.5kw / 60Hz-1.5kw

DHB-301

Discharge (mmH₂0)	50Hz	1800
Discharge (mmH₂0)	60Hz	1800
Vacuum (mmH₂0)	50Hz	1600
Vacuum (mmH₂0)	60Hz	1600
Air Flow (m³/min)	50Hz	3.2
Air Flow (m³/min)	60Hz	4.0
Noise (dB)		75
Weight (kg)		33
Material	Impellar	Aluminium
Material	Case	Aluminium
Bearing	Front	SKF6205zC3
	Middle	-
	Rear	SKF6205zzC3

*The above performance was measured with the condition of 20C˚ air temperature 1,013mbar pressure

*The allowable tolerance of performance value is ±10%

*The noise was measured by 1.5meter distance with opened inlet & discharge port

2. Dimension

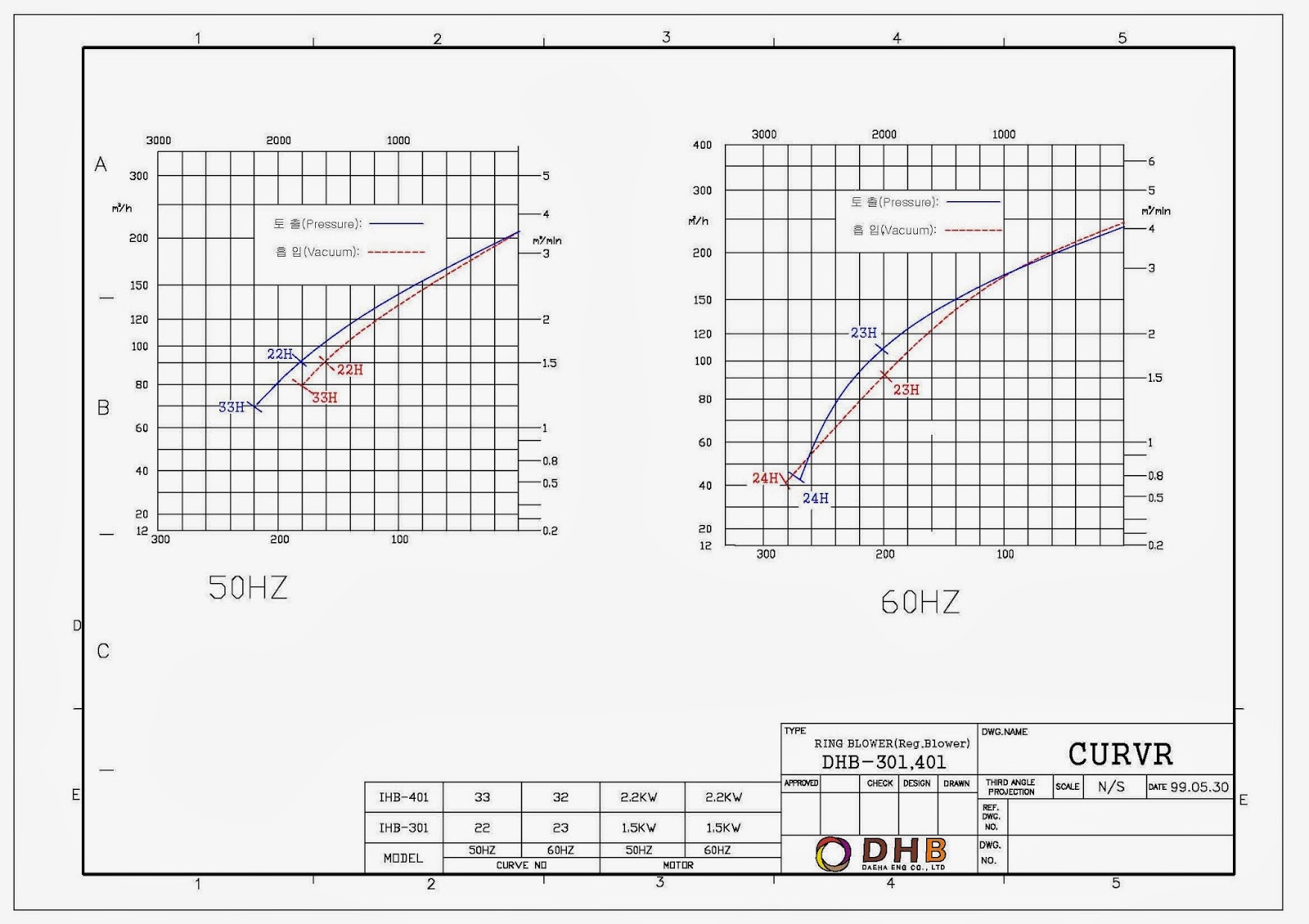

3. Performance Curve
